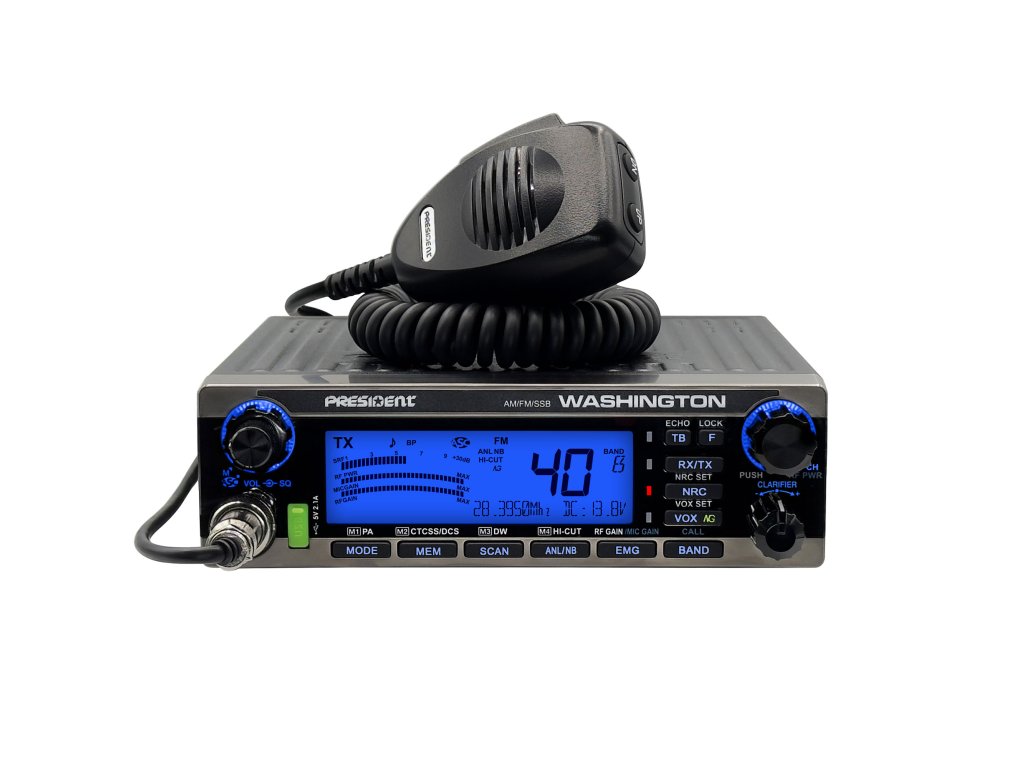

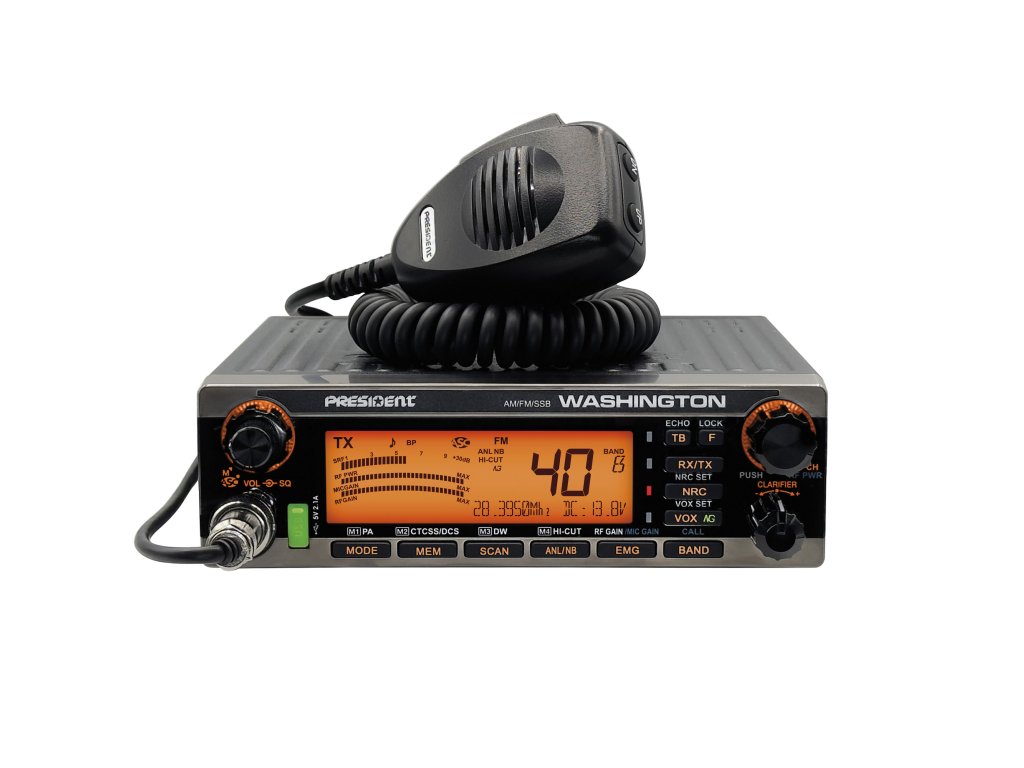

President WASHINGTON
Kód: CB WASHINGTONSouvisející produkty
Detailní popis produktu
Size (mm) | 170 (W) x 250 (D) x 52 (H) |
:Weight | 1,4 kg |
:Accessories supplied | 1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse |
:Antenna socket | SO-239 |
:Antenna impedance | 50 ohms |
:Multiconfiguration | EU / U / D / PL / IN |
:Frequency ranges | from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning) |
:Power supply | Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC) |
:Microphone plug | front (6 pins) |
:Compatible microphone type | Electret , Dynamic |
:External Vox microphone jack | ⋅ |
:External loudspeaker jack | • |
:Public address | • |
:External HP PA socket | • |
:USB socket (front) | 5 V / 2,1 A |
:Display | LCD multifunction |
:Dimmer | • |
:Frequencies display | • |
:Band name | • |
:S-meter | Digital |
:Modulation modes | AM / FM / USB / LSB |
:Volume adjustment and ON/OFF | • |
:Squelch | Manual squelch |
:ASC | • |
:Channel selector | Rotary |
:Mode switch | • |
:F / Menu function key | • |
:Key Beep | , Switchable |
:Roger beep | , Switchable , 6 tones |
:Key locking | • |
:Tone | • |
:Memory | 4 |
:Channel preselection | 2 , channel 9 & 19 , emergency channel (EMG) programmable |
:Span | • |
:Dual watch | • |
:Scan | channels , memories |
:Scan Skip | • |
:RF Power | • |
:RF Gain | • |
:Mike-Gain | • |
:Clarifier | • |
:Talkback | • |
:Vox | • |
:Automatic SWR meter | • |
:SWR (Power Reading /SWR) | • |
:Echo | • |
:CALL function | • |
:TOT | • |
:Filter ANL | • |
:Filter NB | • |
:Filter HI-CUT | • |
:NRC | • |
:Noise Gate | • |
:CTCSS | 38 tones |
:DCS | 104 codes |
Frequency allowance | ± 200 Hz |
:Carrier power | 70 W PEP (AM/USB/LSB) / 50 W (FM) |
:Power limitation | 4/10W |
:APM | |
:Transmission interference | < 4 nW (-54 dBm) |
:Audio response | 300 Hz to 3 kHz |
:Emitted power in the adj. channel | < 20 μW |
:Microphone sensitivity | 3 mV |
:Drain | 6 A (with modulation) |
:Modulated signal distortion | 2% |
Max. sensitivity at 20 dB sinad | 0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW) |
:Frequency response | 300 Hz to 3 kHz |
:Adjacent channel selectivity | 60 dB |
:Maximum audio power | 3 W |
:Squelch sensitivity | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
:Frequency image rejection rate | 60 dB |
:Intermediate frequency rej. rate | 70 dB |
:Drain | 400 mA nominal / 600 mA max. |
Doplňkové parametry
Kategorie: | Radiostanice CB |
---|---|
Hmotnost: | 1.4 kg |
