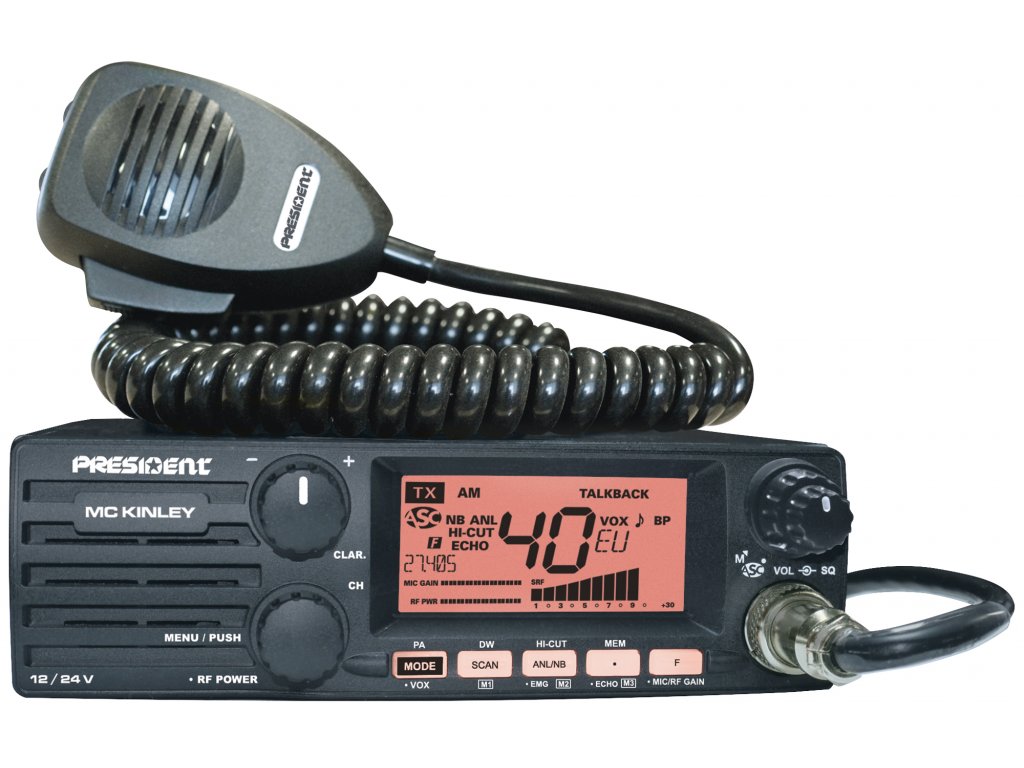

President Mc KINLEY ASC 12/24 VOX

Kód: CB KINLEY
Neohodnoceno
5 951 Kč 4 918 Kč bez DPH
7 dní
  • 40 channels AM / FM / LSB / USB
    - Volume adjustment and ON/OFF
    - Manual squelch and ASC
    - Multi-functions LCD display
    - Frequencies display
    - S-meter
    - Vox function (Hands free)
    - ANL filter , NB and HI-CUT
    - RF Gain / Mic Gain
    - RF Power
    - Clarifier
    - Channels and memories scan
    - 3 Memories
    - Dim
    - F function key
    - Beep Function
    - Roger Beep
    - Mode switch AM / FM / LSB / USB
    - Dual watch
    - Automatic SWR (Power Reading /SWR)
    - Preset channel programmable (EMG 1&2)
    - TOT (Time out timer)
    - Front microphone plug
    - Microphone Electret or Dynamic
    - External loudspeaker jack
  • - DIN size

Back light color:

Detailní informace

Detailní popis produktu

Technical characteristics

General
Number of channels : 40
Modulation modes : AM / FM / USB / LSB
Frequency ranges : from 26.965 MHz to 27.405 MHz
Antenna impedance : 50 ohms
Power supply : 12 V / 24 V
Size : 170 (W) x 150 (D) x 52 (H)
DIN Size :
Weight : 1.1 kg
Accessories supplied : power cord with fuse
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws
Transmission
Frequency allowance : +/- 300 Hz
Carrier power : 4 W AM / 4 W FM / 12 W USB / 12 W LSB
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz in AM/FM/USB/LSB
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3,0 mV
Drain : 3 A (with modulation)
Modulated signal distortion : 1,8 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.5 µV - 113 dBm (AM/FM) / 0.28 µV - 118 dBm (USB/LSB)
Frequency response : 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : minimum 0.2 µV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain :

400 mA nominal / 1000 mA maximum
