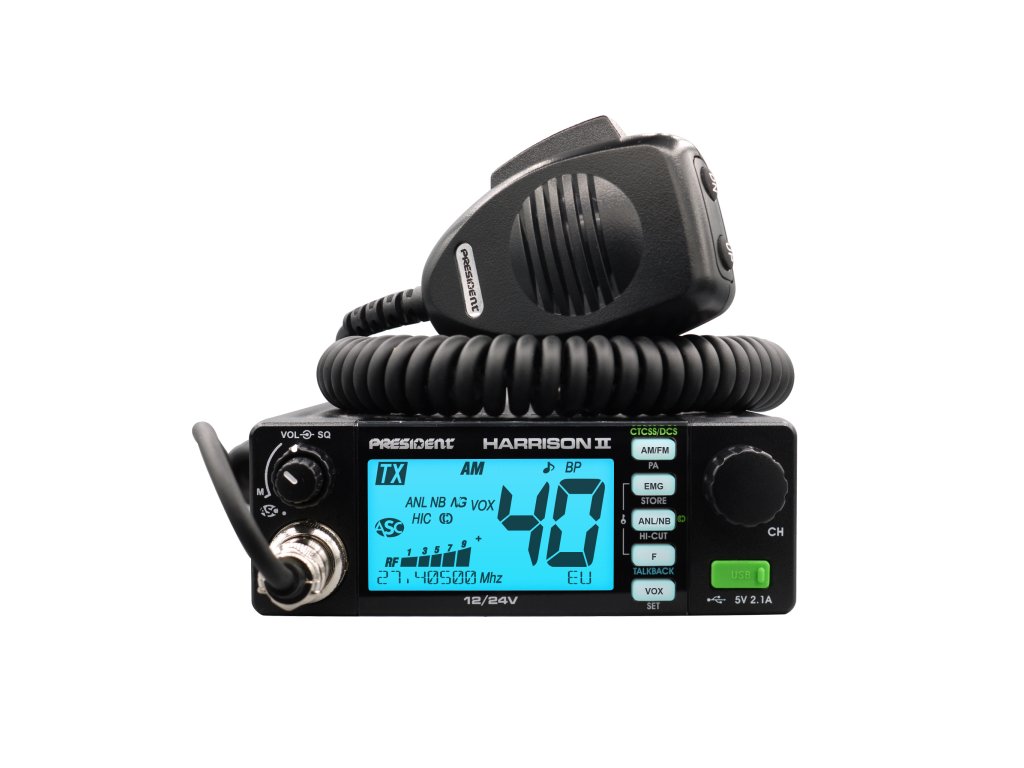

President HARRISON II ASC VOX CTCSS

Kód: CB HARRISON2
Novinka Tip
Neohodnoceno
3 790 Kč 3 132 Kč bez DPH
21 dní

- 40 channels AM / FM
- 12 / 24 V
- Channel rotary switch
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Vox function (Hands free)
- ANL filter, NB and HI-CUT
- Compander
- Noise Gate
- CTCSS/DCS
- Scan
- Preset emergency (EMG 1/2)
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Talkback
- Tone
- Micro Type (Electret / Dynamic)
- Public Address
- SWR Automatic
- Key locking
- Front microphone plug
- External loudspeaker jack
- USB 5V 2.1A

                                      Back light color: Orange Green Blue Cyan Yellow Purple White

Detailní informace

Detailní popis produktu

Technical characteristics

General
Number of channels : 40
Modulation modes : AM / FM
Frequency ranges : from 26.965 MHz to 27.405 MHz
CTCSS : 38 tones
DCS : 104 codes
Antenna impedance : 50 ohms
Power supply : 12 V / 24 V
Size : 125 (L) x 45 (H) x 165 (D)
DIN Size :
Weight : 0.9 kg
Accessories supplied : 1 microphone UP/DOWN and its hanger
mounting cradle
screws
Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W AM / 4 W FM
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 7 mV
Drain : 1,7 A (with modulation)
Modulated signal distortion : 1,8 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.5 μV - 113 dBm
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 2 W
Squelch sensitivity : minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 300 mA nominal / 750 mA maximum



CTCSS Tone List
Freq. (Hz) Freq. (Hz) Freq. (Hz)
00 - oF OFF 13 103.5 26 162.2
1 67.0 14 107.2 27 167.9
2 71.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
4 77.0 17 118.8 30 186.2
5 79.7 18 123.0 31 192.8
6 82.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
8 88.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3



DCS Code List
DCS (Octal) DCS (Octal) DCS (Octal) DCS (Octal)
1 23 27 152 53 311 79 466
2 25 28 155 54 315 80 503
3 26 29 156 55 325 81 506
4 31 30 162 56 331 82 516
5 32 31 165 57 332 83 523
6 36 32 172 58 343 84 526
7 43 33 174 59 346 85 532
8 47 34 205 60 351 86 546
9 51 35 212 61 356 87 565
10 53 36 223 62 364 88 606
11 54 37 225 63 365 89 612
12 65 38 226 64 371 90 624
13 71 39 243 65 411 91 627
14 72 40 244 66 412 92 631
15 73 41 245 67 413 93 632
16 74 42 246 68 423 94 654
17 114 43 251 69 431 95 662
18 115 44 252 70 432 96 664
19 116 45 255 71 445 97 703
20 122 46 261 72 446 98 712
21 125 47 263 73 452 99 723
22 131 48 265 74 454 100 731
23 132 49 266 75 455 101 732
24 134 50 271 76 462 102 734
25 143 51 274 77 464 103 743
26 145 52 306 78 465 104 754
