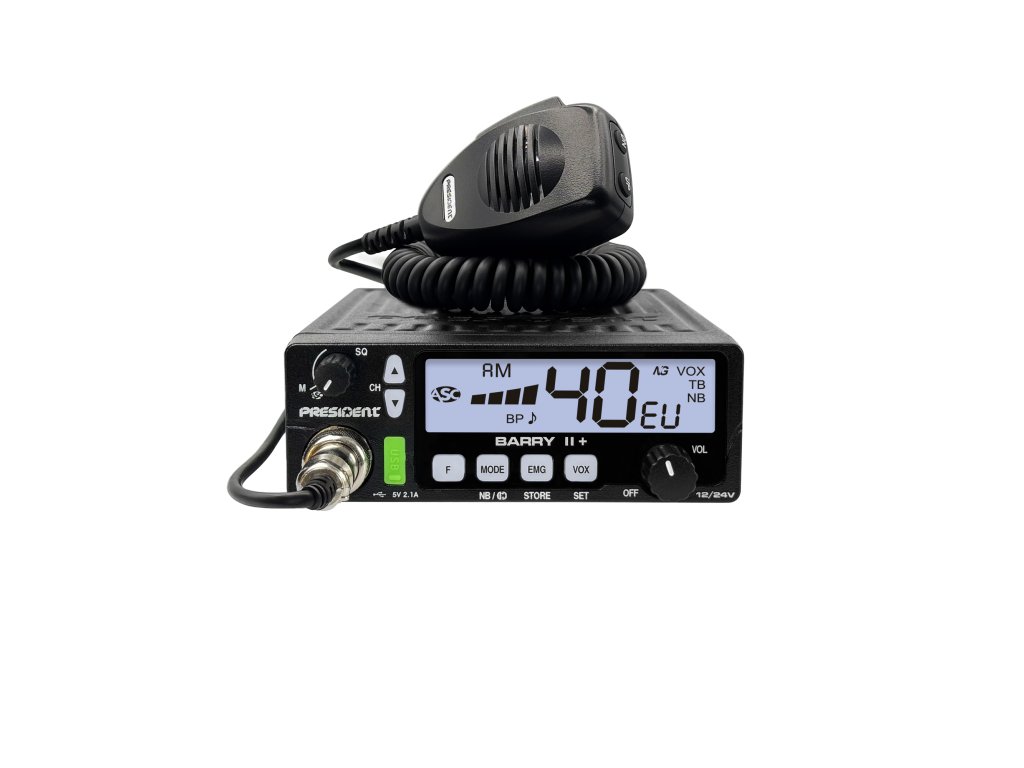

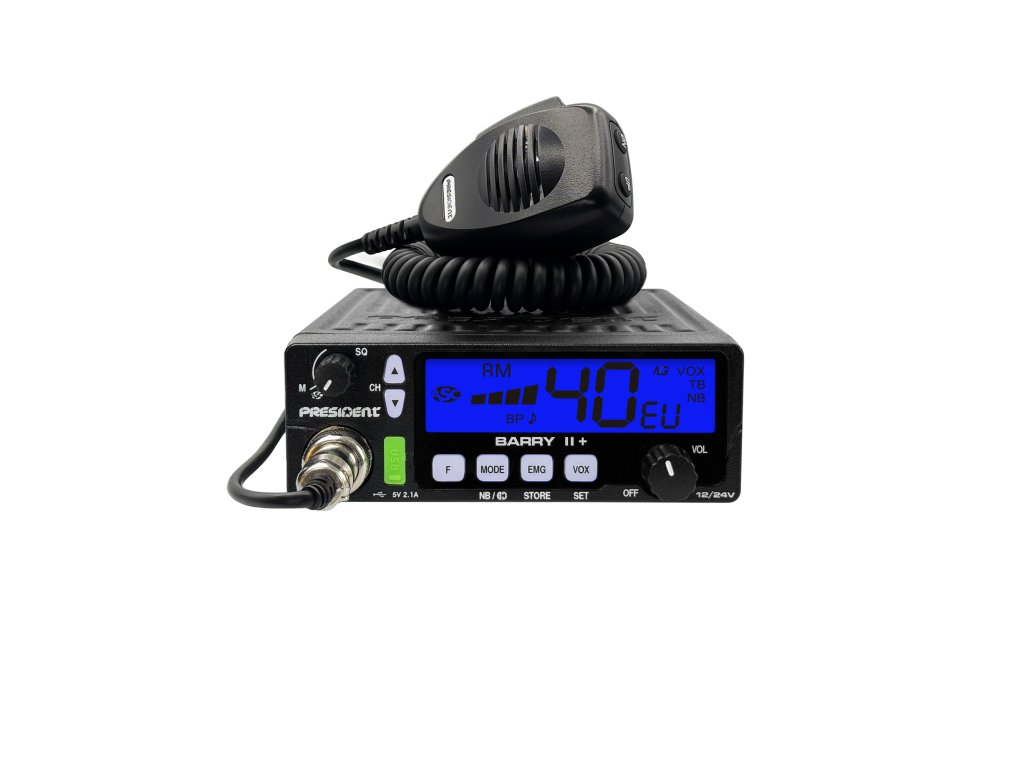

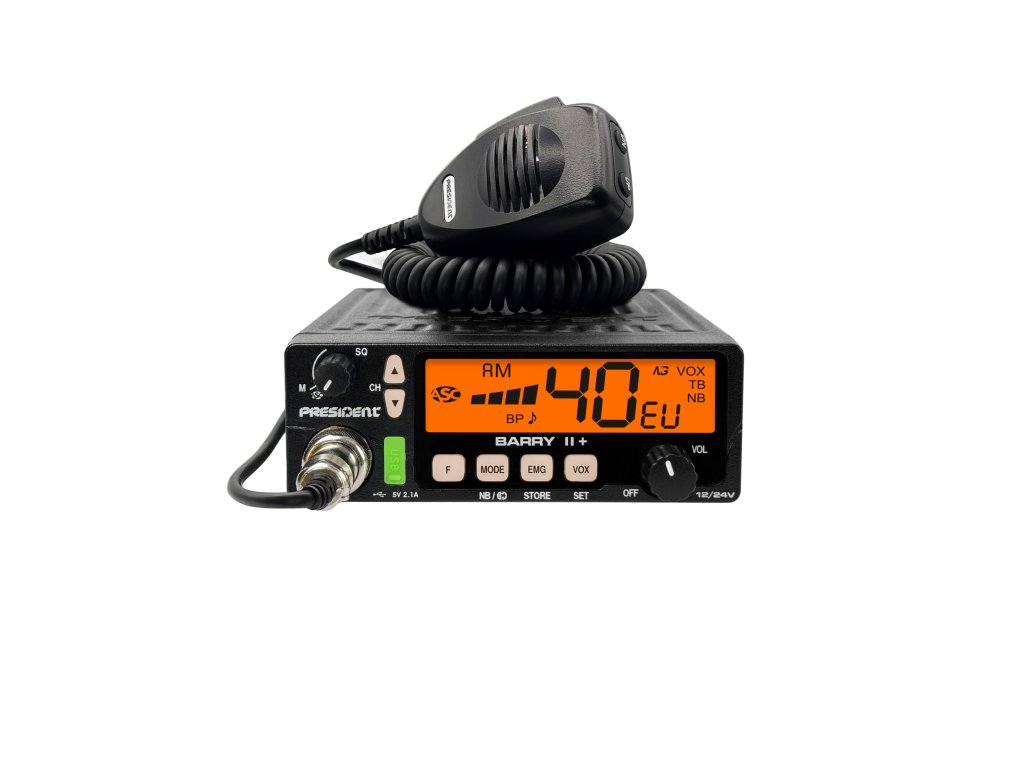

President BARRY II AM/FM VOX

Kód: CB BARRY 2
Tip
1 hodnocení
2 390 Kč 1 975 Kč bez DPH
Skladem (4 ks)

40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Public Address
- Talkback
- ANL filter, NB
- Compander
- F function key
- Beep Function
- Roger Beep
- VOX
- Noise Gate
- Mode switch AM / FM
- Preset channel programmable
- TOT (Time out timer)
- Front microphone plug
- External loudspeaker jack

Osvětlení displeje: Orange Green Blue Cyan Yellow Purple White

Detailní informace

Detailní popis produktu

Technical characteristics

General
Number of channels : 40
Modulation modes : AM / FM
Frequency ranges : from 26.965 MHz to 27.405 MHz
Antenna impedance : 50 ohms
Power supply : 12 V / 24 V
Size : 125 (W) x 180 (D) x 45 (H)
Weight : 0.9 kg
Accessories supplied : 1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws
Filter : ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W AM / 4 W FM
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior a 20 μW
Microphone sensitivity : 7 mV
Drain : 1,7 A at 13,2 V / 0,85 A at 26,4 V
Modulated signal distortion : 2 %
Reception
Maxi. sensitivity at 20 dB sinad : 0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 2.5 W
Squelch sensitivity : mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V)
