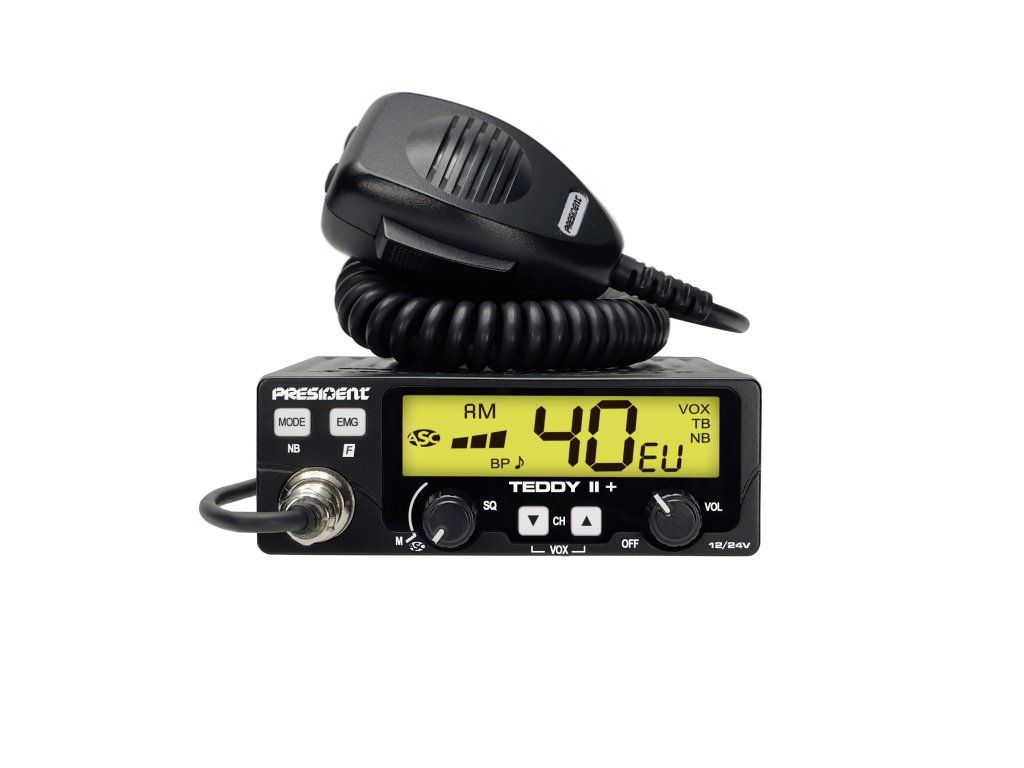

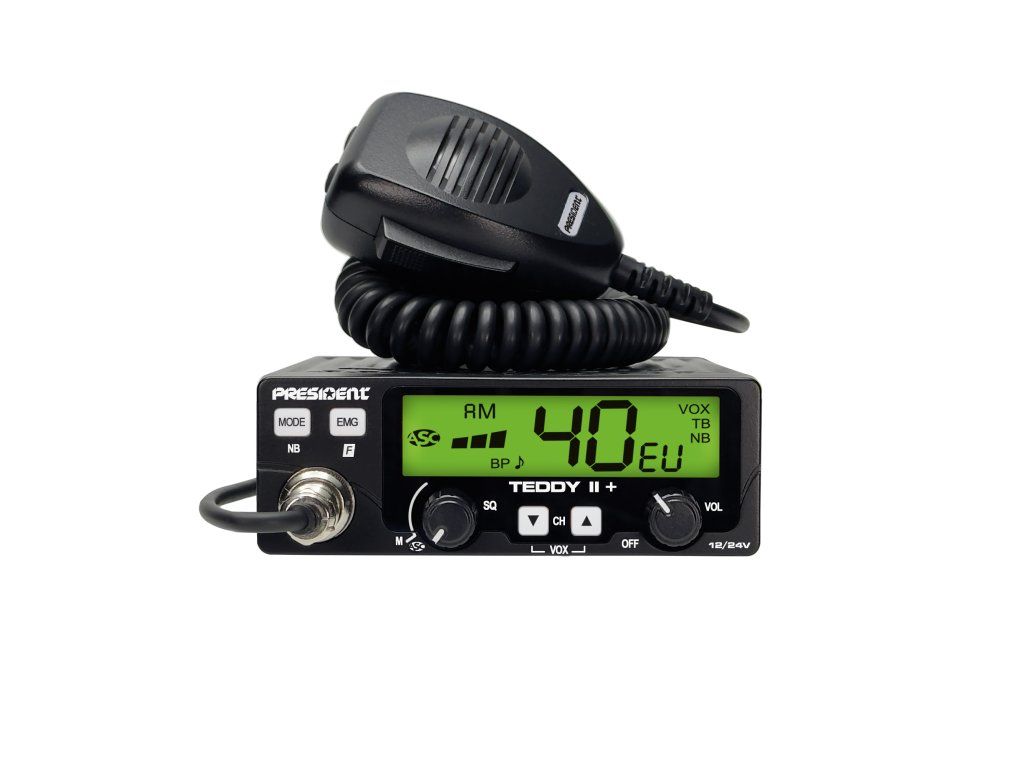

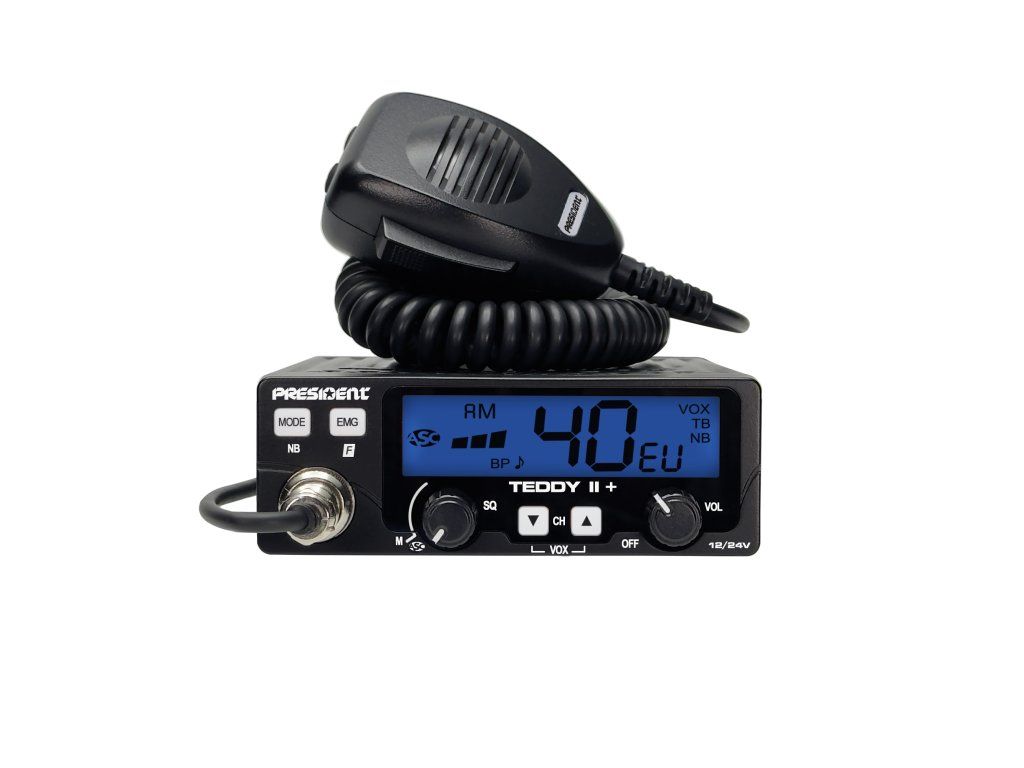

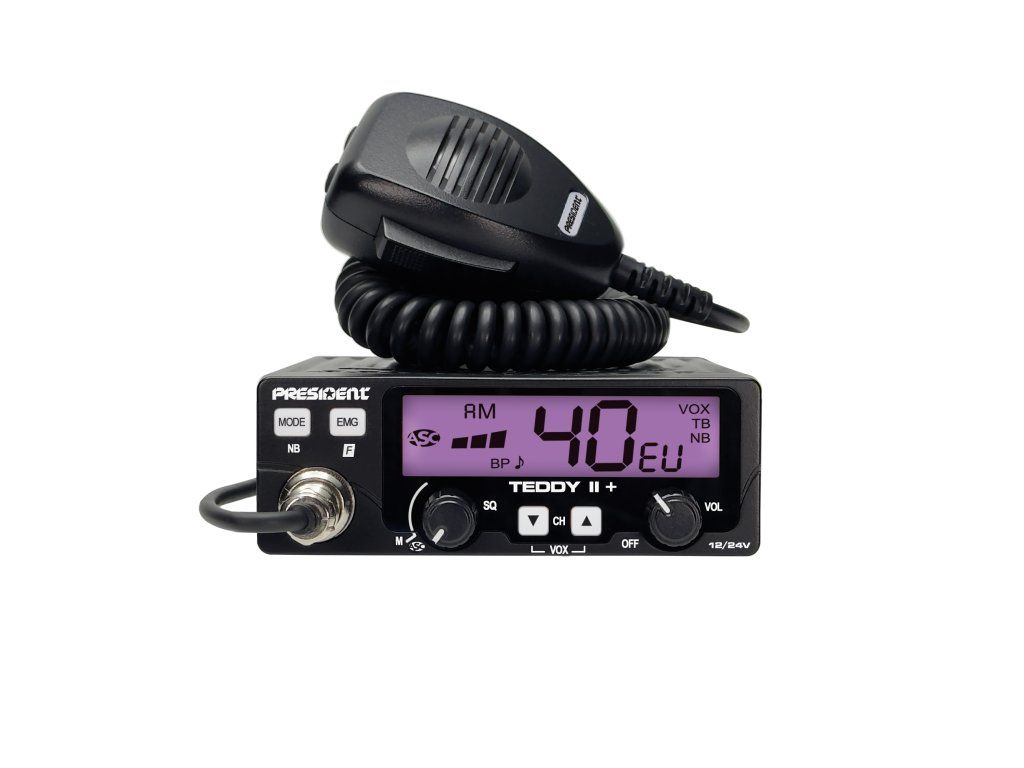

President TEDDY II ASC VOX

Kód: CB TEDDY 2
Neohodnoceno
2 190 Kč 1 810 Kč bez DPH
Skladem (2 ks)

- 40 channels AM / FM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter, NB
- VOX
- F function key
- Beep Function
- Mode switch AM / FM
- Preset channel programmable
- Front microphone plug
- External loudspeaker jack

Detailní informace

Detailní popis produktu

Technical characteristics

General
Number of channels : 40
Modulation modes : AM / FM
Frequency ranges : from 26.965 MHz to 27.405 MHz
Antenna impedance : 50 ohms
Power supply : 12 V
Size : 125 (W) x 151 (D) x 45 (H)
Weight : 0.9 kg
Accessories supplied : Ultra light electret microphone with support
mounting cradle
screws
Filter : ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W AM / 4 W FM
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 7 mV
Drain : 1,7 A (with modulation)
Modulated signal distortion : 2 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 2.5 W
Squelch sensitivity : minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 160 ~ 420 mA
